Juno Trac-Master Current Limiting Feeds provide a simple solution for complying with stringent energy codes like ASHRAE 90.1 and California Title 24.
Features
- Current limiting electrical feed required - sold separately
- Finish: Black, White
- Capacity: 5A
- Wattage: 600W
- Voltage: 120V

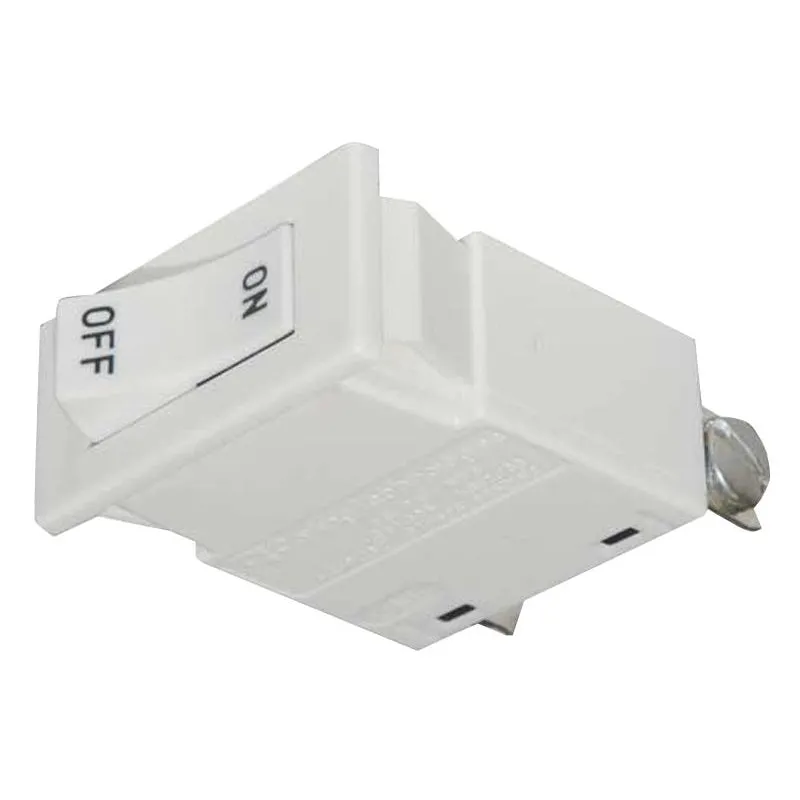

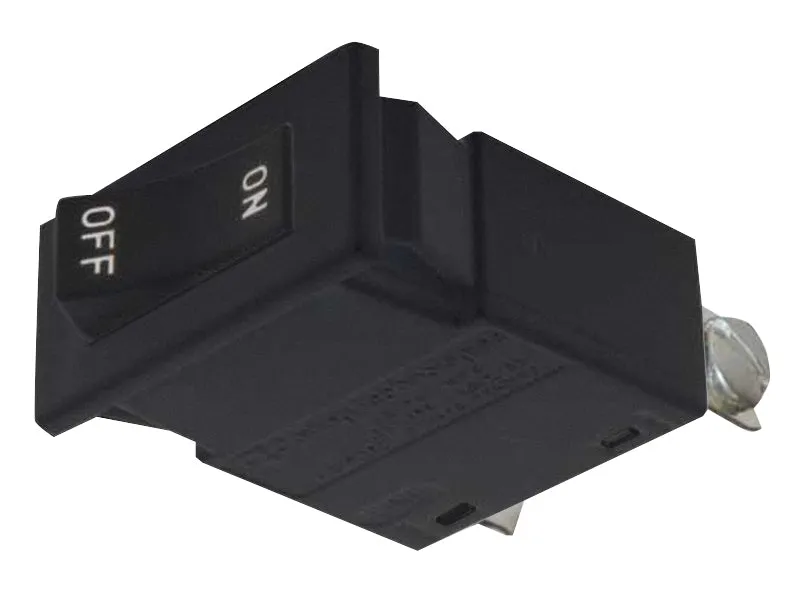

- These miniature, single-pole supplementary circuit breakers limit the current (wattage) that can be consumed on the section of trac being fed, permitting trac lighting density and performance to be optimized without incurring watts-per-linear-foot “penalties.”
- Utilizes hydraulic magnetic technology which provides accurate and reliable circuit protection even when exposed to extremely hot and/or cold application environments
- Can be operated continuously at rated current
- Specially designed to prevent nuisance tripping
- Easily snaps into mounting plate without the use of tools
- Leads wires provided for simplified installation
- ON/OFF indication clearly identifies breaker status
- Easily resettable in the event of an overcurrent situation
